Traction Battery
Cell Chemistry:
Lithium-Ion
Nominal Voltage:
96V
Capacity:
150Ah
Energy:
14,400Wh
Internal Resistance:
<300mΩ
Modules per Battery:
3
Temperature Range:
-40°C to +125°C
Humidity Sensor:
0–100% RH
Communication:
RS485, Isolated CAN
Charging Voltage:
105V
Float Voltage (Standby):
100V
Max Charge Current:
100A
Recommended Charge Current:
50A
Charge Temp Range:
-20°C to 50°C (with Heater Kit)
Operating Voltage Range:
64V – 105V
Cut-off Voltage:
64V
Recommended Discharge Current:
150A
Max Discharge Current:
450A
Pulse Discharge Current:
3000A
Discharge Temp Range:
-40°C to 50°C
Dimensions:
630×310×280mm (customizable)
Casing:
Anodized 6082 Aluminum
Weight:
< 79kg
IP Rating:
IP67
Description of the Product

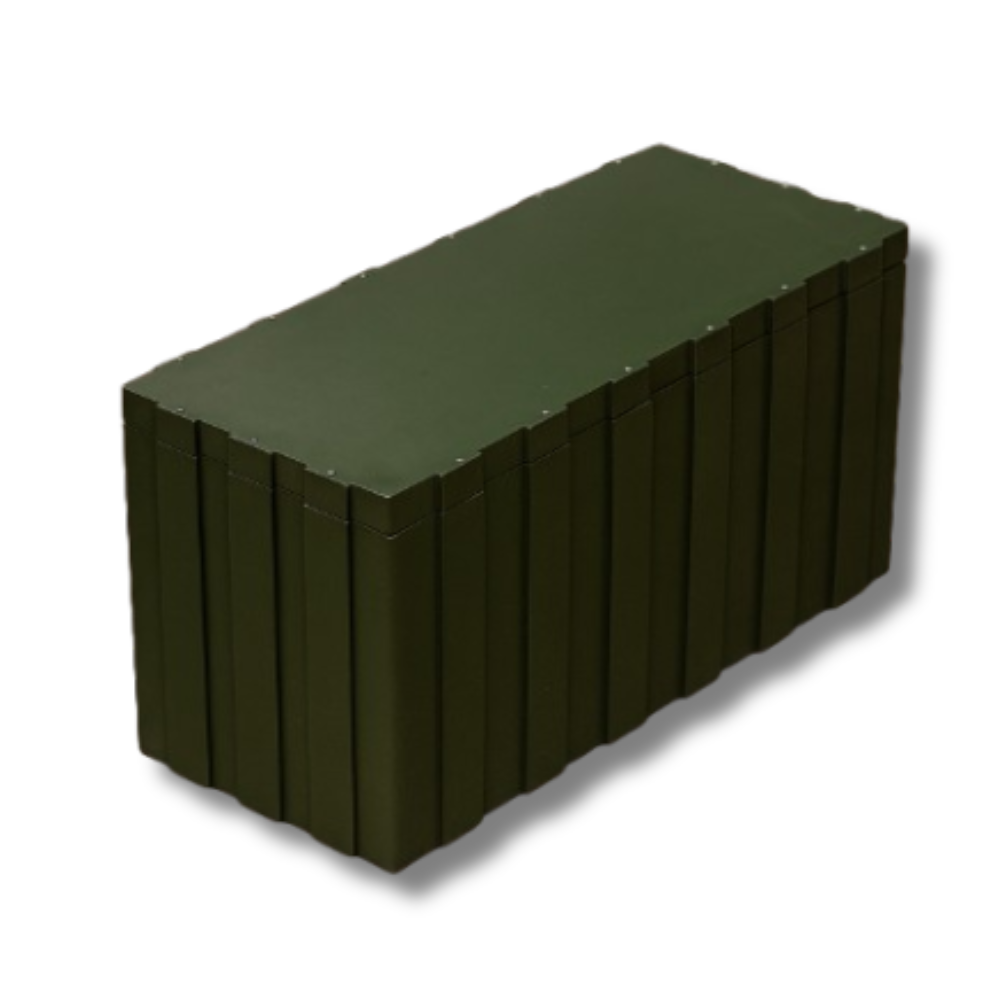

This 96 V, 150 Ah lithium-ion battery delivers 14.4 kWh of energy, making it ideal for electric vehicles, industrial machinery, and renewable energy storage systems demanding high voltage and power density. With IP67-rated anodized aluminum casing and advanced RS485/Isolated CAN communication, it ensures robust performance and smart monitoring in extreme conditions. For long-term storage, maintain ~50% SOC (¬29.6 V), in a dry environment at 15–35°C with 45–75% RH, and perform a charge/discharge cycle every 6 months.
Note: This product is fully customizable to match your unique requirements — including voltage, capacity, application type, design specifications, shape, and size. Reach out to us to build a solution tailored specifically for your equipment or vehicle.
