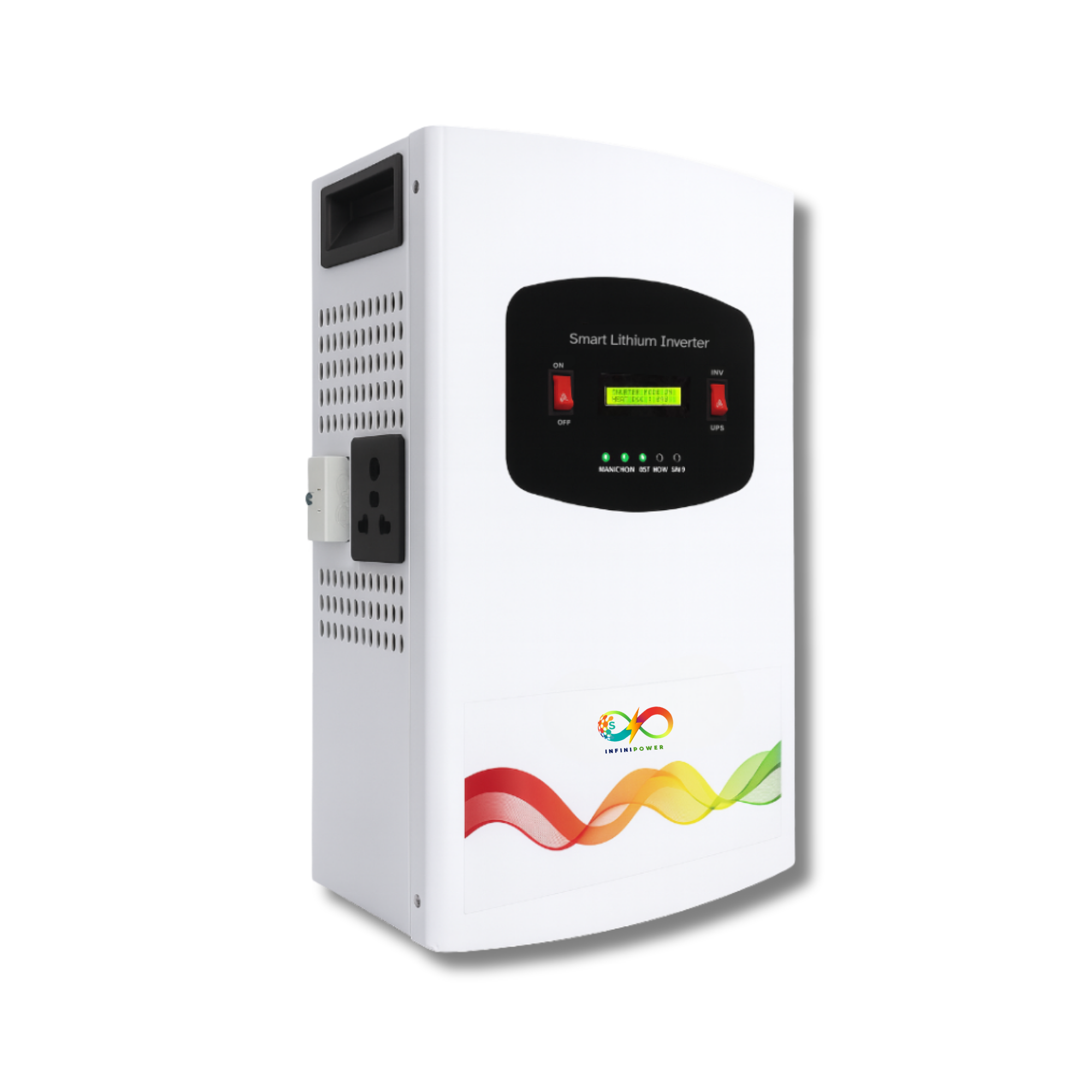

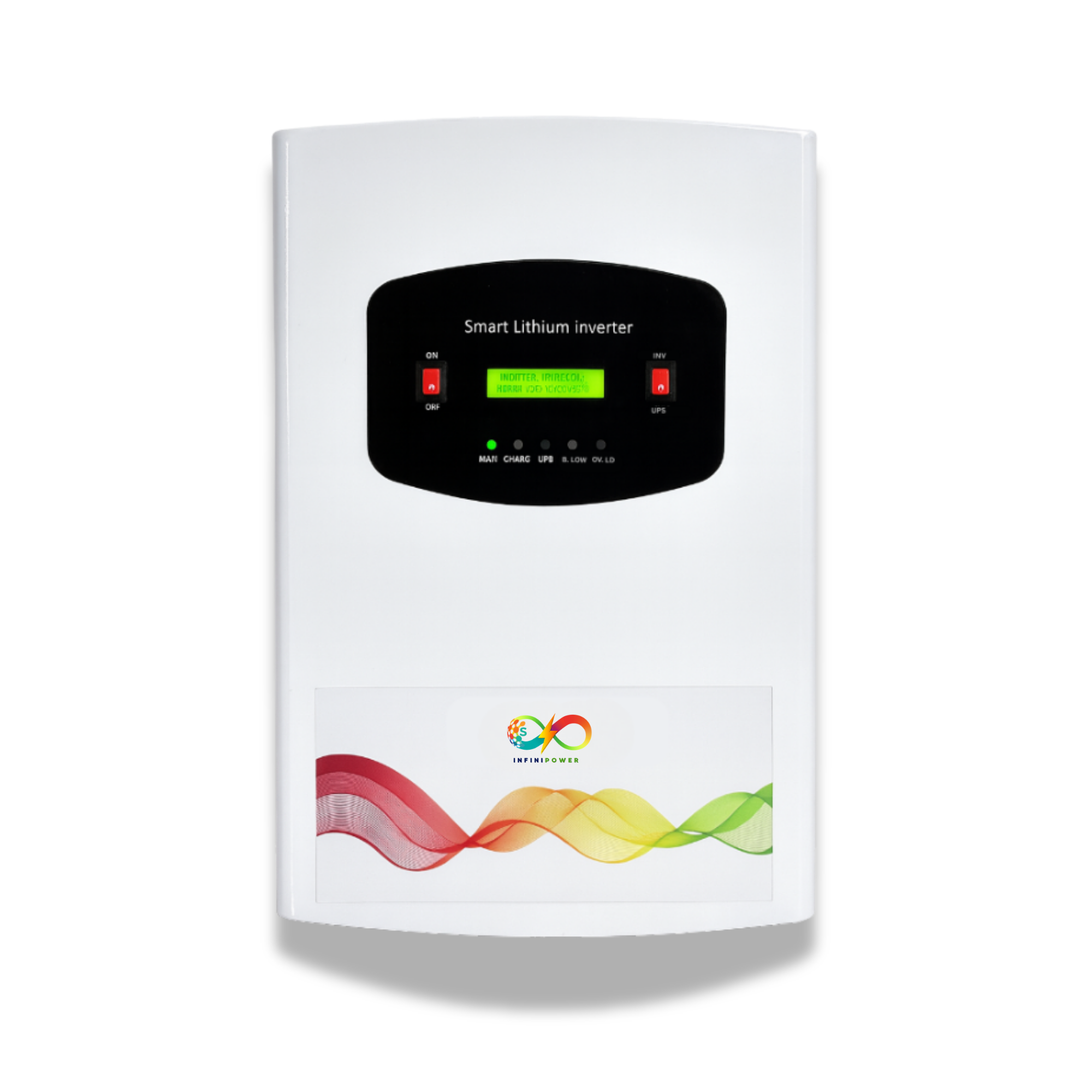

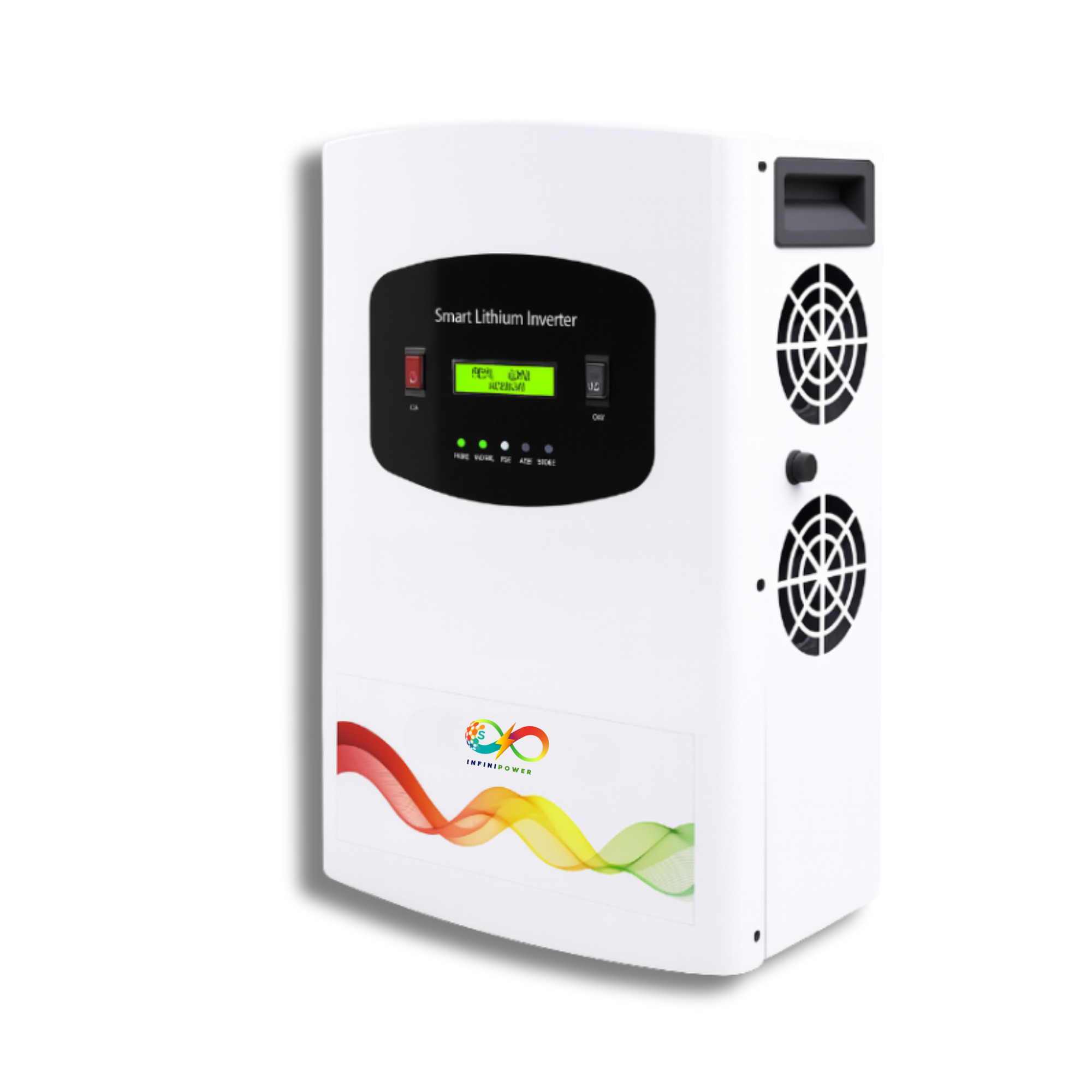

Infinipower Smart Lithium Inverter
Power Ratings:
300 VA / 850 VA / 1 KVA
Battery:
12V DC
Modes:
UPS / INV (Configurable)
Input Voltage:
80–285 V (Low selectable)
Input Frequency:
47–54 Hz
Output (Mains):
Same as input
Battery Charging Current:
Max 8A
Protection:
Input circuit breaker
Inverter Type:
MOSFET based inverter with isolation
Inverter Output:
220V ± 3%, 50.1Hz ± 1%
Power Factor:
≥ 0.8
Efficiency:
≥ 95%
Distortion:
≤ 5% (linear load)
Overload Protection:
110% for 10s, 120% for 4s → Shutdown
Auto Restart:
Smart (battery low/overload)
LED Indicators:
Mains, Inverter, Battery Charger, Fault, overload, low battery
LCD Display:
Input/Output Voltage, Battery Voltage, Load %, Frequencies, Charging Current
Warnings:
Overload, Battery Low, Over Temp, HW Fault
Temperature Range:
0–40°C
Humidity:
10–90% RH (non-condensed)
Description of the Product
Infinipower Smart Lithium Inverter supports power ratings from 300 VA to 1 KVA with a 12V DC battery and configurable UPS/INW modes. It features IGBT-based inverter technology with an isolation transformer, delivering 220V ±3% output at high efficiency (≥ 90%). It includes smart protection mechanisms like overload shutdown and auto-restart. The LCD displays voltage, load, frequency, and warnings for overload, low battery, and faults. Designed for varied environments, it operates reliably from 0–40°C with up to 90% non-condensing humidity.
Note: This product is fully customizable to match your unique requirements — including voltage, capacity, application type, design specifications, shape, and size. Reach out to us to build a solution tailored specifically for your equipment or vehicle.
