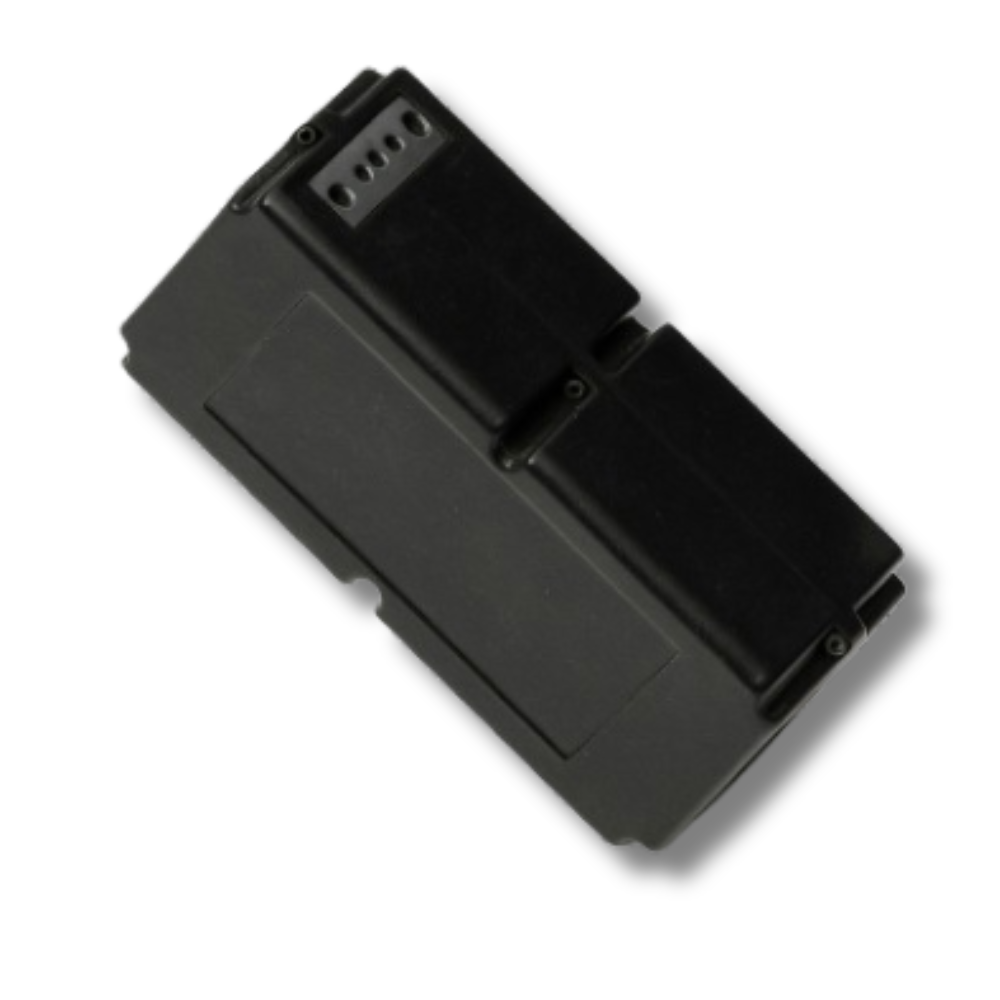

Compact Radio Communication Battery 14V / 3Ah
BatteryType:
Lithium-Ion (Li-Ion)
Nominal Voltage:
14.0V
Design Voltage:
14.0V
Charging Voltage:
16.8V
Typical Capacity:
3.0Ah (3000mAh)
Rated Capacity:
≥ 2850mAh
Initial Impedance:
< 200 mΩ (1kHz at 20°C)
Charging Temperature Range:
-10°C to +55°C
Max Charge Current:
1.5A
Pre-charge Current:
300mA (if cell < 3.0V)
Taper Current Cutoff:
Begins tapering when current < 100mA
Charge-Inhibit Threshold:
Disabled above 45°C, resumes below 44°C
Discharge Cutoff Voltage:
10.8V
Discharge Temperature Range:
-20°C to +60°C
Over-current Discharge Protection:
Trips at ≥ 3.5A
Over-temp Discharge Cutoff:
Trips at ≥ 75°C, recovers at ≤ 65°C
Storage Temp Range:
-20°C to +60°C
Recommended Storage Temp:
< 21°C, RH ≤ 80%
Shelf Life:
6 months at 25°C (20–30% SoC)
Description of the Product
This 14.0 V, 3.0 Ah lithium-ion battery pack is designed to deliver reliable power with intelligent safety protections. Supporting charging up to 16.8 V, it features over-current and over-temperature safeguards, ensuring dependable operation in demanding environments. With a wide operating range of −20°C to +60°C and up to 6 months of shelf life when stored at 20–30% SoC, it is well-suited for communication, industrial, and portable electronic applications.
Note: This product is fully customizable to match your unique requirements — including voltage, capacity, application type, design specifications, shape, and size. Reach out to us to build a solution tailored specifically for your equipment or vehicle.
