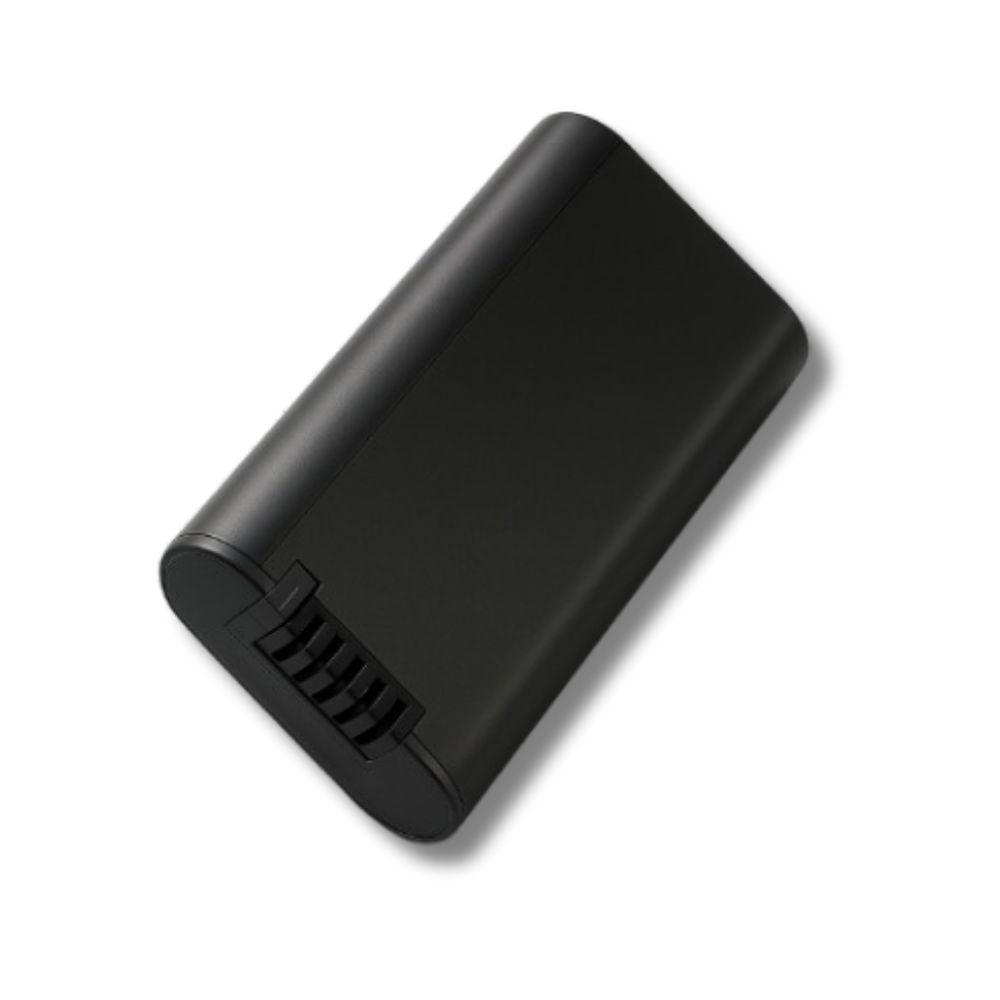

High-Capacity Radio Communication Battery 7.2V / 10.5Ah
Cell chemistry:
Lithium-ion (Li-ion)
Nominal Voltage:
7.2 V
Nominal Capacity:
10.5 Ah
Nominal Watt Hours:
75.6 Wh
Internal Resistance:
< 190 mΩ (at 1 kHz, 20°C)
Communication method:
SMBus v1.1 (SBS v1.1 data system)
Operating Temp:
Charge = 0°C to +45°C, Discharge = −20°C to +60°C
Charging Voltage:
8.4 V
Recommended Charge Current:
2 A
Allowed Max Charge Current:
5 A
Operating Voltage Range:
8.4 V to 6.0 V
Discharge Cut-off Voltage:
6.0 V
Recommended Continuous Discharge Current:
Up to 6.0 A
Max Continuous Discharge Current:
8.0 A
Discharge Temp Range:
−20°C to +55°C
Dimensions (L×W×H):
151.0 × 59.0 × 22.2 mm ± 0.5 mm
Casing:
ABS Plastic
Weight:
Approx. 500 g ± 20 g (without connector)
Ingress Protection:
IP65
Storage Temperature:
−20°C to 70°C
Recommended Storage Temp:
−20°C to 55°C
Description of the Product
This 7.2 V, 10.5 Ah lithium-ion smart battery is designed for reliable use in radio communication equipment. With intelligent SMBus monitoring, rugged ABS construction, and IP65 protection, it ensures dependable performance even in harsh conditions. Compact and lightweight, this battery is well-suited for portable and communication equipment. It supports extended operation and stable power delivery across wide temperature ranges, making it ideal for mission-critical radio applications.
Note: This product is fully customizable to match your unique requirements — including voltage, capacity, application type, design specifications, shape, and size. Reach out to us to build a solution tailored specifically for your equipment or vehicle.
