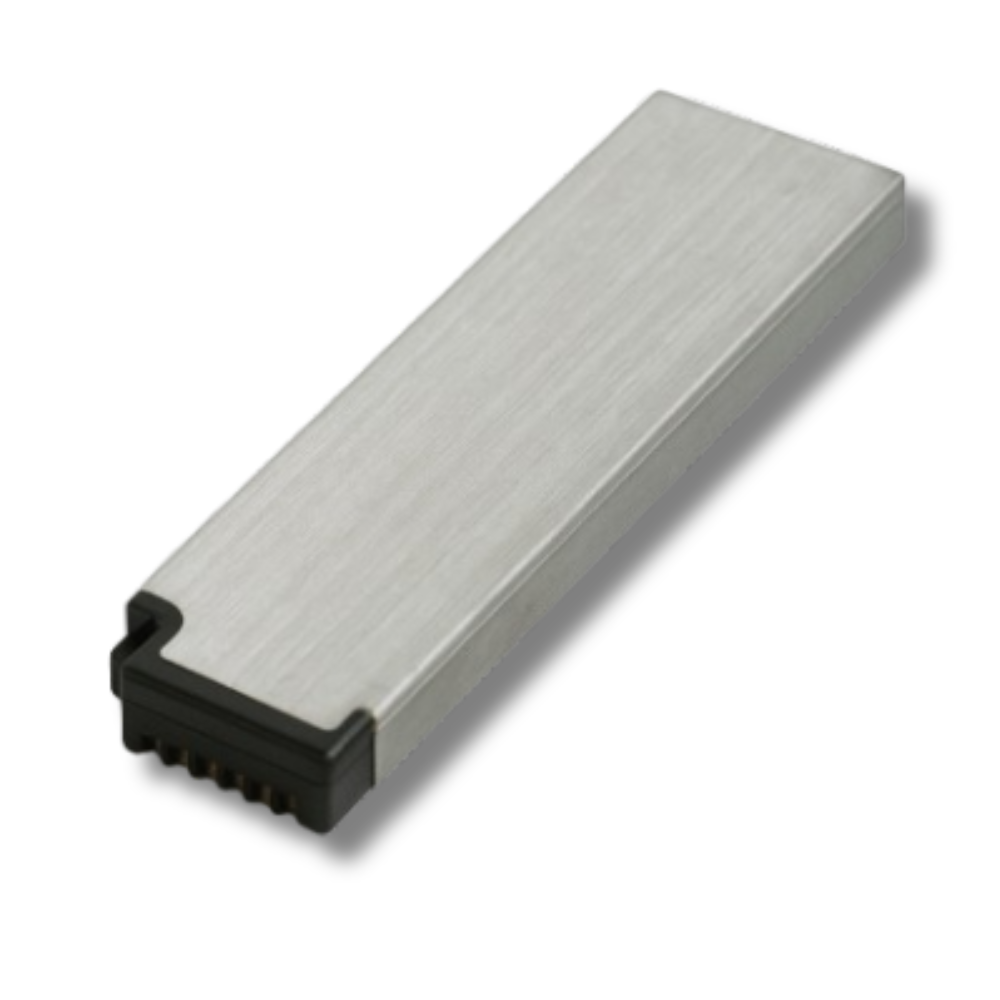

Compact Radio Communication Battery 14V / 3.3Ah
Cell Chemistry:
Lithium-Ion (Li-Ion)
Design Voltage:
14.4V
Charging Voltage:
16.8V ± 50mV
Typical Capacity:
3.35Ah (3350mAh)
Nominal Watt Hours:
48.2Wh
Initial Impedance:
< 190 mΩ @ 1 kHz, 20°C
Communication Method:
SMBus v1.1
Charge Control:
SMBus Level II or III charger required
Discharge Control:
SMBus Level II or III charger required
Charging Temperature Range:
-10°C to +55°C
Recommended Charge Current:
1.5A
Charge Current Limit:
3.0A max
Pre-charge Current:
500mA (if any cell < 3.0V)
Operating Voltage Range:
11.0V – 16.8V
Discharge Voltage Cut-off:
11.0V
Recommended Continuous Discharge Current:
1.5A
Max Continuous Discharge Current:
8.25A
Discharge Temperature Range:
-20°C to +60°C
Dimensions (L×W×H):
150.9 × 29.2 × 22.4 mm
Casing:
ABS
Weight:
0.23 kg
Ingress Protection:
IP65
Storage Temperature Range:
-20°C to +60°C, ≤ 80% RH
Recommended Storage Temp:
< 21°C
Shelf Life:
6 months at 25°C (20–30% SoC)
Cycle Life:
~2205 mAh after 300 cycles (0.3C/0.2C)
Description of the Product
This 14.4 V, 3.35 Ah lithium-ion smart battery is designed for reliable radio communication applications. Equipped with SMBus v1.1 for intelligent monitoring, rugged ABS casing with IP65 protection, and efficient charge/discharge control, it ensures dependable performance. Operating across a wide temperature range, it delivers stable power in both harsh and demanding environments, supporting charge from −10°C to +55°C and discharge from −20°C to +60°C. Featuring intelligent control, safety protections, and robust design, it offers dependable power for both professional and industrial applications.
Note: This product is fully customizable to match your unique requirements — including voltage, capacity, application type, design specifications, shape, and size. Reach out to us to build a solution tailored specifically for your equipment or vehicle.
