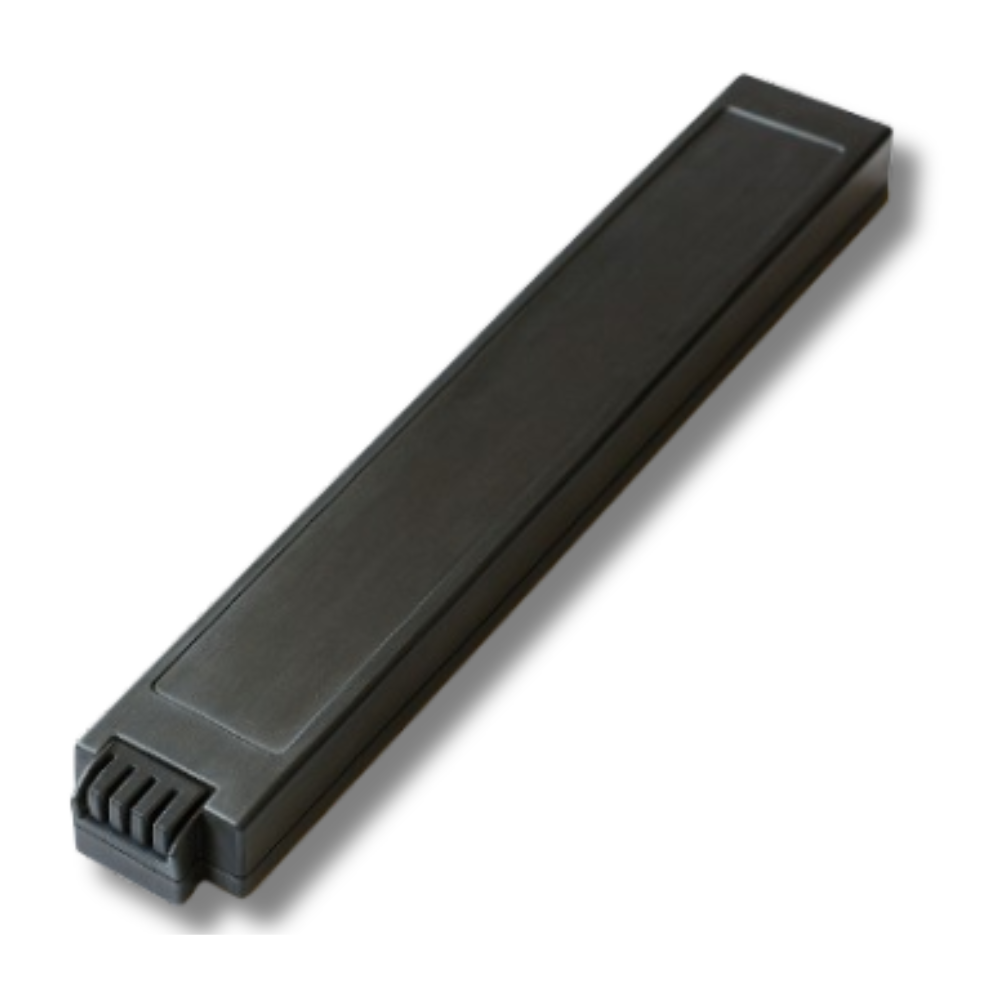

Extended Radio Communication Battery 14V / 6.8Ah
Cell Chemistry:
Lithium-ion (Li-ion)
Design Voltage:
14.4V
Nominal Capacity:
6.8Ah (6800mAh)
Nominal Watt Hours:
97.92 Wh
Initial Impedance:
< 190 mΩ (at 1 kHz, 20°C)
Communication Method:
SMBus v1.1
Charging Voltage:
16.8V
Recommended Charge Current:
≤ 3.0A
Allowed Max Charge Current:
3.5A
Pre-charge Current:
680mA (if any cell < 3.0V)
Charging Cut-off Threshold:
Tapering begins below 226mA
Charging Temperature Range:
-10°C to +55°C
Charge Control:
SMBus Level II or III charger required
Operating Voltage Range:
16.8V to 11.0V
Discharge Cut-off Voltage:
11.0V
Recommended Continuous Discharge Current:
1.34A
Max Continuous Discharge Current:
8.25A
Discharge Temperature Range:
-20°C to +60°C
Discharge Control:
MOSFET controlled
Dimensions (L×W×H):
281.8 × 29.0 × 21.7 mm
Casing:
ABS
Weight:
Approx. 0.435 kg
Ingress Protection:
IP65
Storage Temperature Range:
-20°C to +60°C, ≤ 80% RH
Recommended Storage Temp:
< 21°C
Shelf Life:
6 months at 25°C, 20–30% SoC
Cycle Life:
~4790mAh after 300 cycles (0.3C/0.2C)
Description of the Product
This 14.4 V, 6.8 Ah lithium-ion smart battery delivers 97.9 Wh of reliable energy for radio communication systems. Built with SMBus v1.1 monitoring, rugged ABS casing, and IP65 protection, it ensures durability and safety. Designed for versatile use, it supports charging between −10°C to +55°C, discharging from −20°C to +60°C, and safe storage up to 60°C, making it dependable in demanding field conditions. Featuring intelligent control, safety protections, and robust design, it offers dependable power for both professional and industrial applications.
Note: This product is fully customizable to match your unique requirements — including voltage, capacity, application type, design specifications, shape, and size. Reach out to us to build a solution tailored specifically for your equipment or vehicle.
