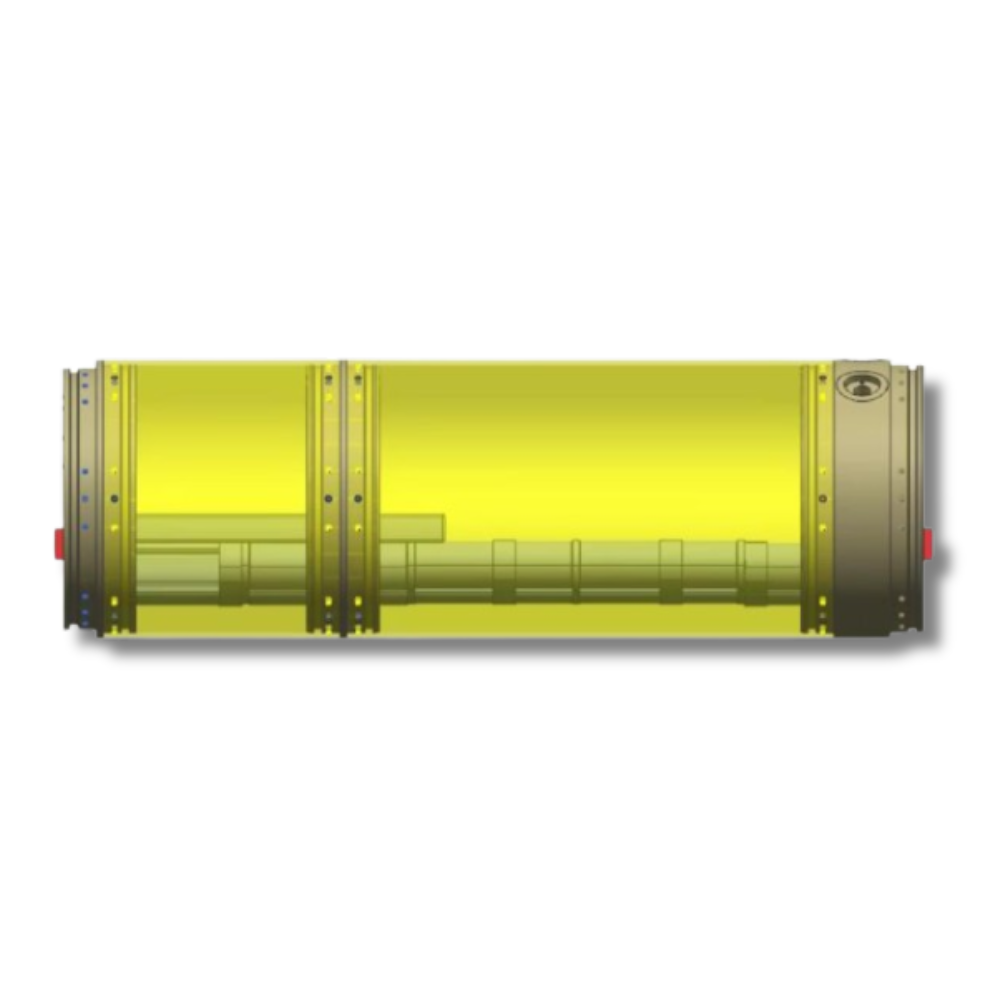

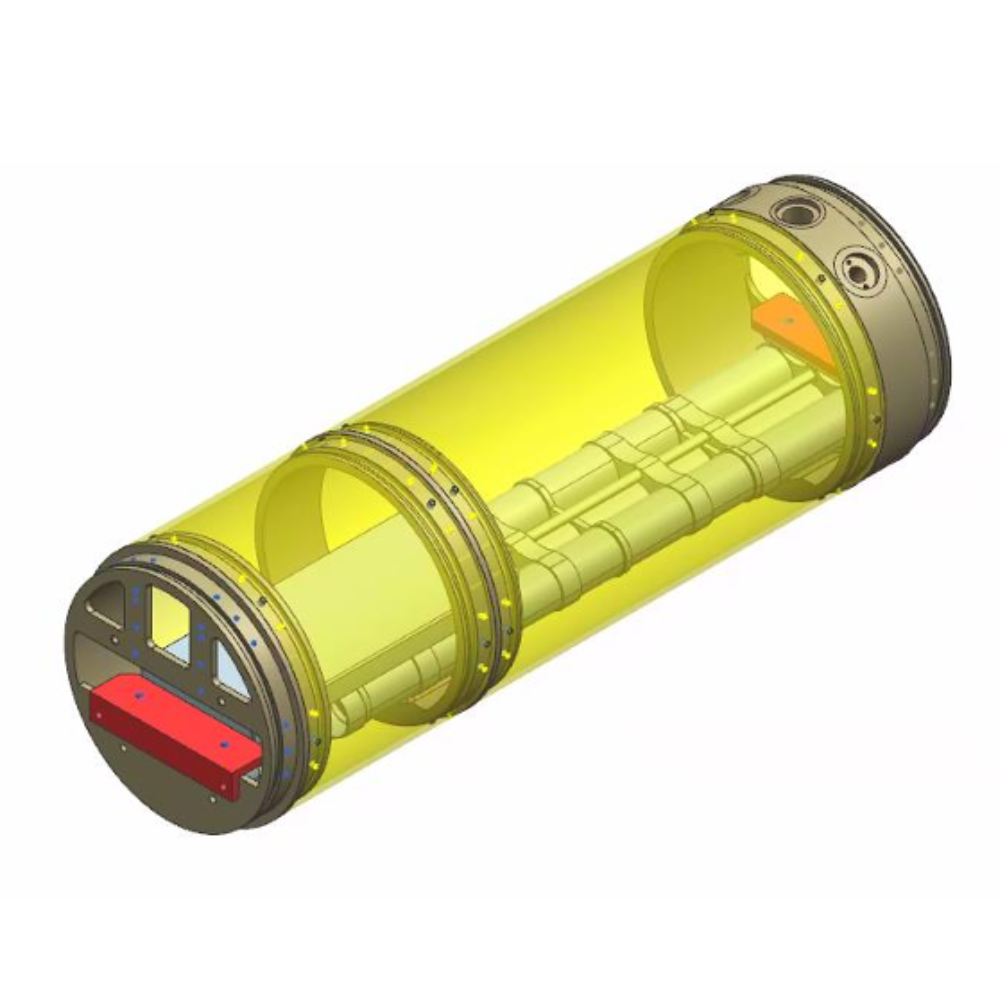

EMATT battery System - Underwater Vehicle Battery
Cell Chemistry:
Lithium-Ion
Nominal Voltage:
25.9 V
Capacity:
9.6 Ah
Energy:
248.6 Wh
Communication:
RS485 & Isolated CAN
Charging Voltage:
29.4 V
Float Voltage (Standby):
28 V
Max Charge Current:
5 A
Recommended Charge Current:
3 A
Discharging Operating Voltage:
21 V to 29.4 V
Cut-off Voltage:
18.9 V
Recommended Discharge Current:
4.8 A
Max Discharge Current:
9.8 A
Pulse Discharge Current:
328.8 A
Discharging Temp Range:
-20°C to 55°C
Dimensions:
369.2×65.36×40.50 mm (excluding connectors)
Casing:
ABS Plastic (FDM Printed)
Weight:
1.4 kg
Fasteners:
CSK M6 / SHC M4 / 316 Stainless Steel
Description of the Product
This compact 25.9 V, 9.6 Ah (248.6 Wh) Lithium-Ion battery is engineered for lightweight autonomous applications such as drones, EMATT systems, and handheld equipment requiring high reliability in a small footprint. Specifically suited for powering the Expendable Mobile ASW Training Target (EMATT), this battery supports autonomous underwater operations by delivering consistent performance under short-duration, mission-critical conditions. With RS485 and isolated CAN interfaces, it ensures seamless communication and integration with naval training platforms. For optimal storage, maintain ~50% SOC, store at 15–35°C and 45–75% RH, and cycle the battery every 6 months to maintain performance.
Note: This product is fully customizable to match your unique requirements — including voltage, capacity, application type, design specifications, shape, and size. Reach out to us to build a solution tailored specifically for your equipment or vehicle.
